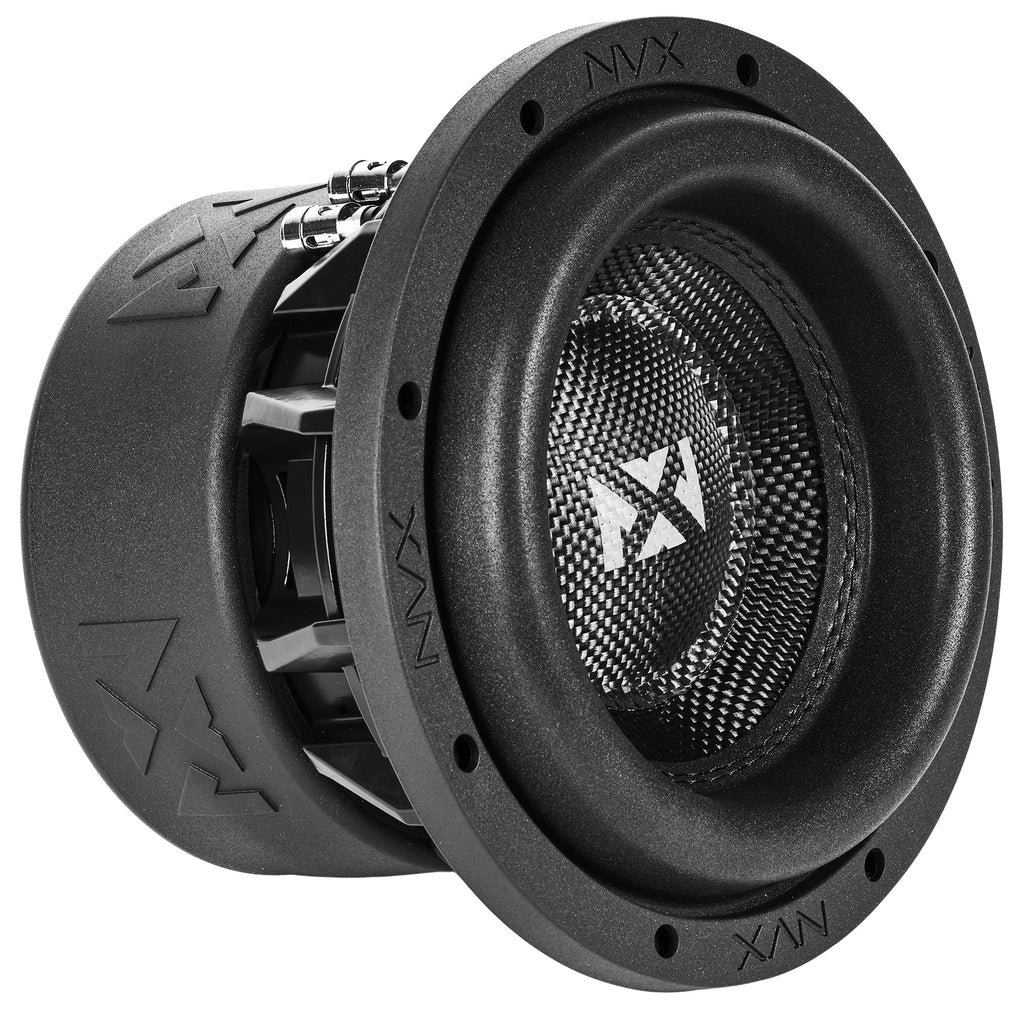

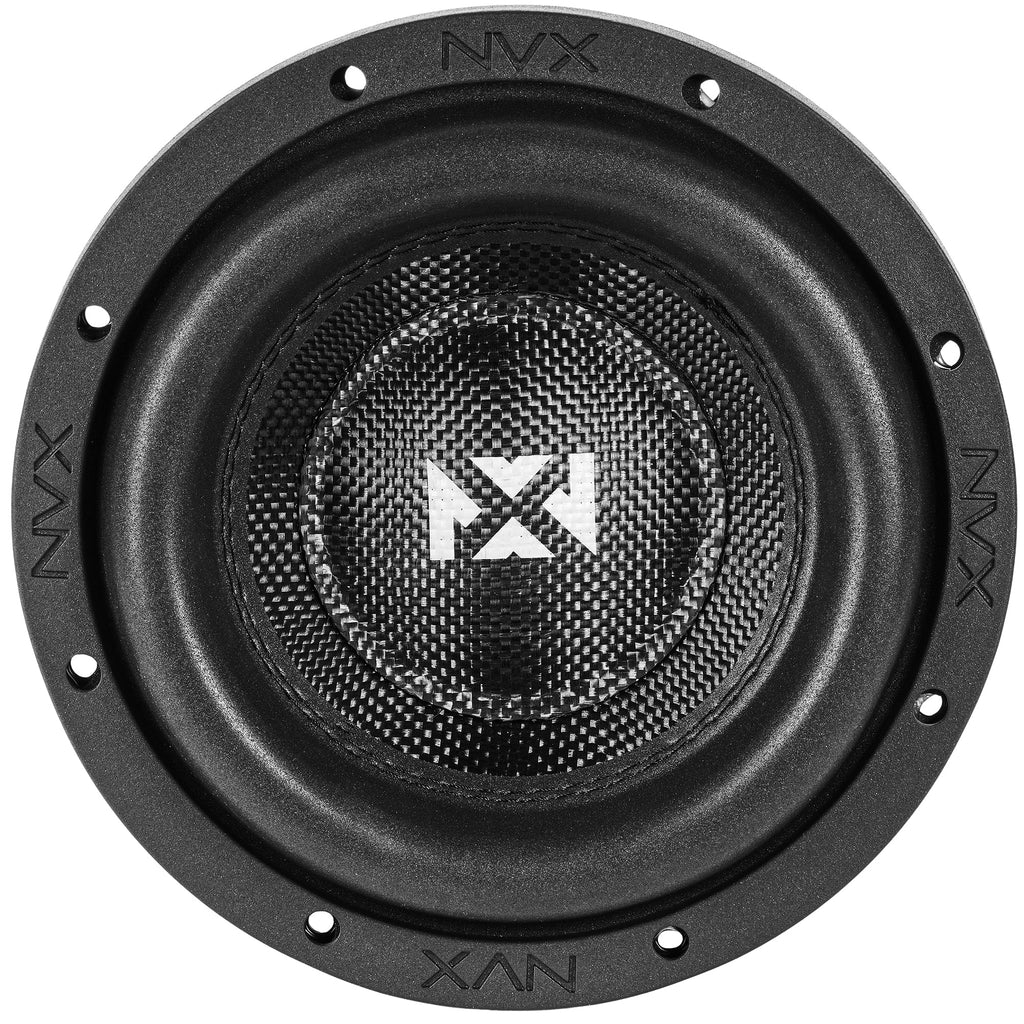

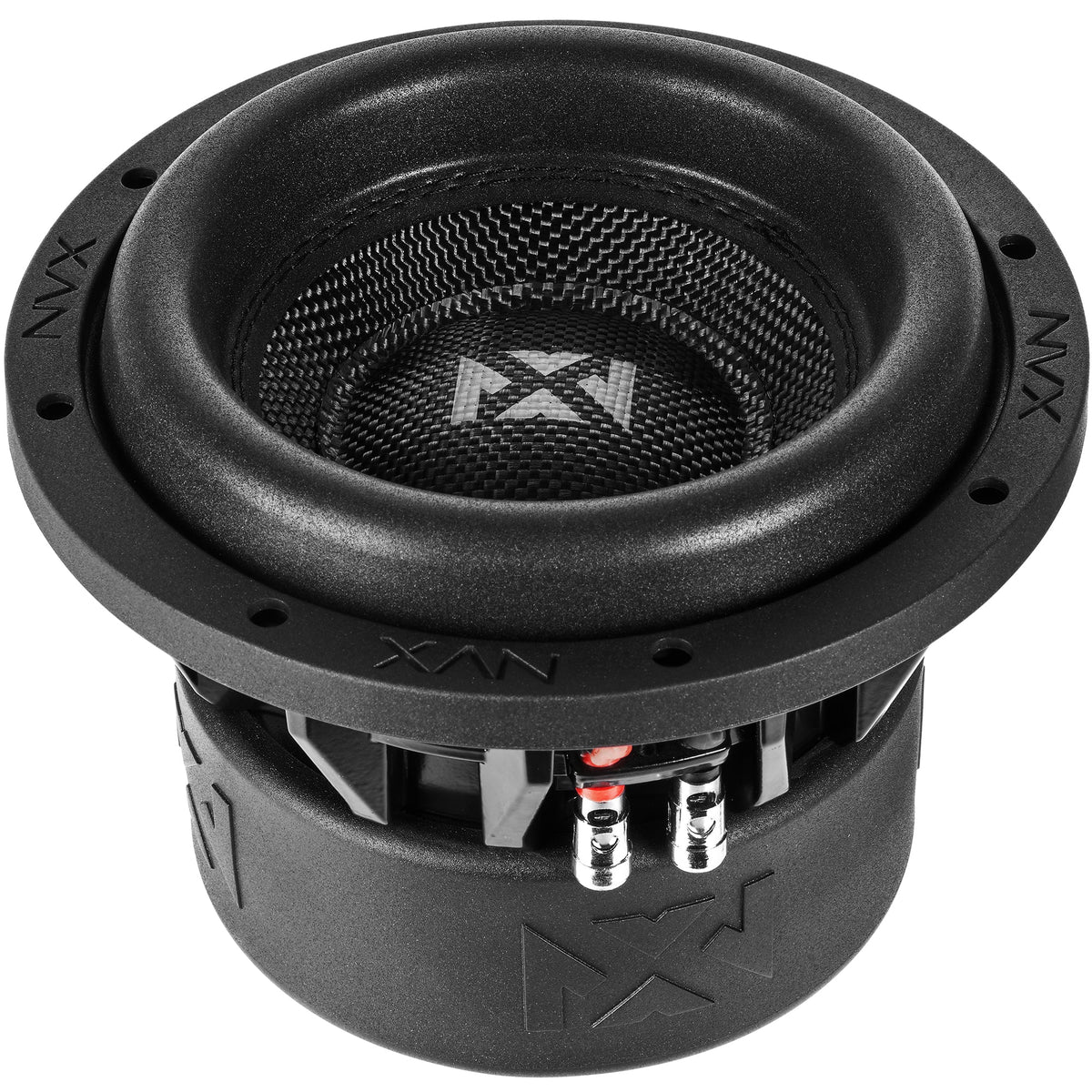

VCW82v3 8-Inch Dual 2-Ohm Car Subwoofer with 650W RMS, 1300W Peak, 14mm Xmax and Cast Aluminum Basket

The VCW82v3 is an 8-inch dual 2-ohm car subwoofer rated for 650W RMS and 1300W peak power handling, with 14mm one-way Xmax for compact high-output bass systems.

Key Features

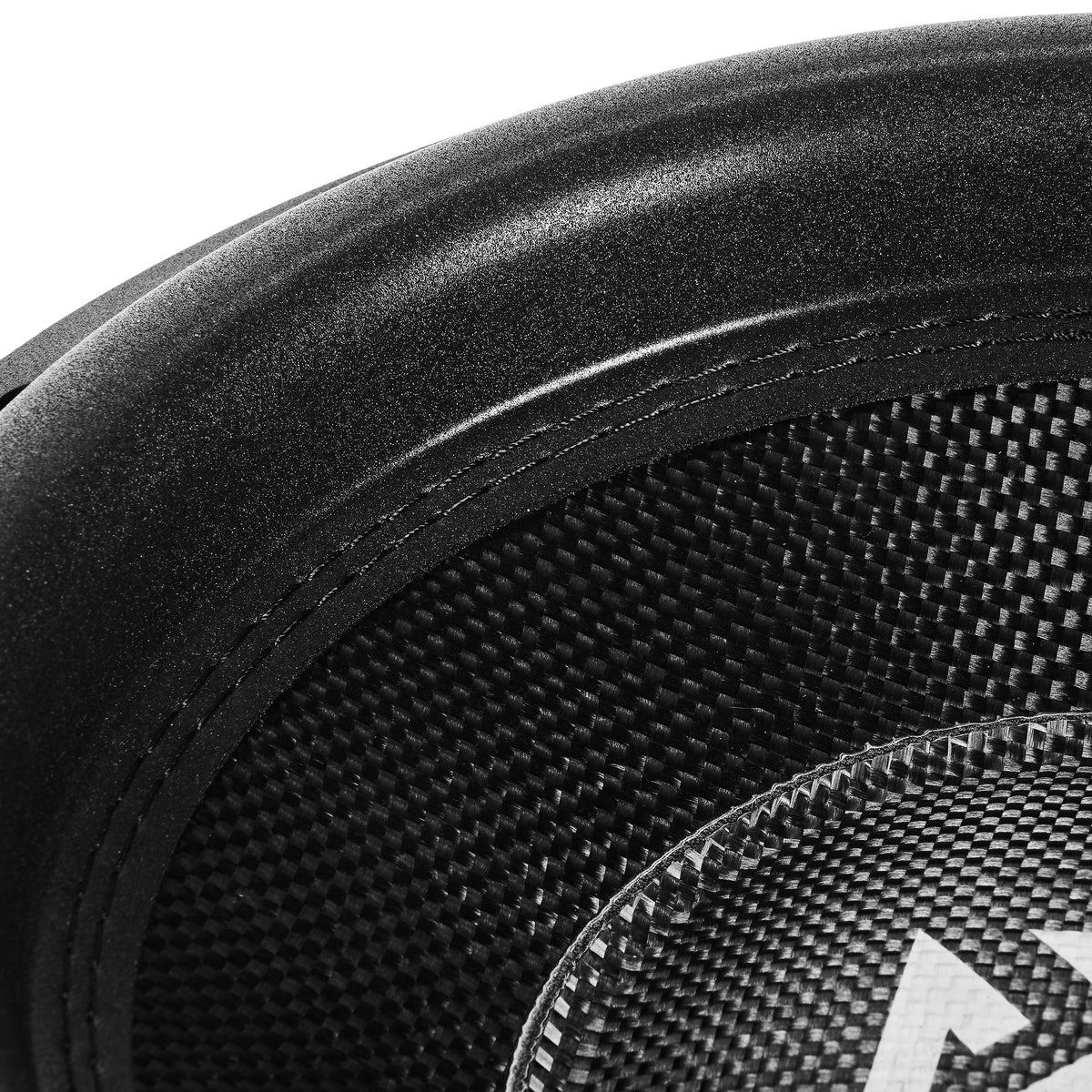

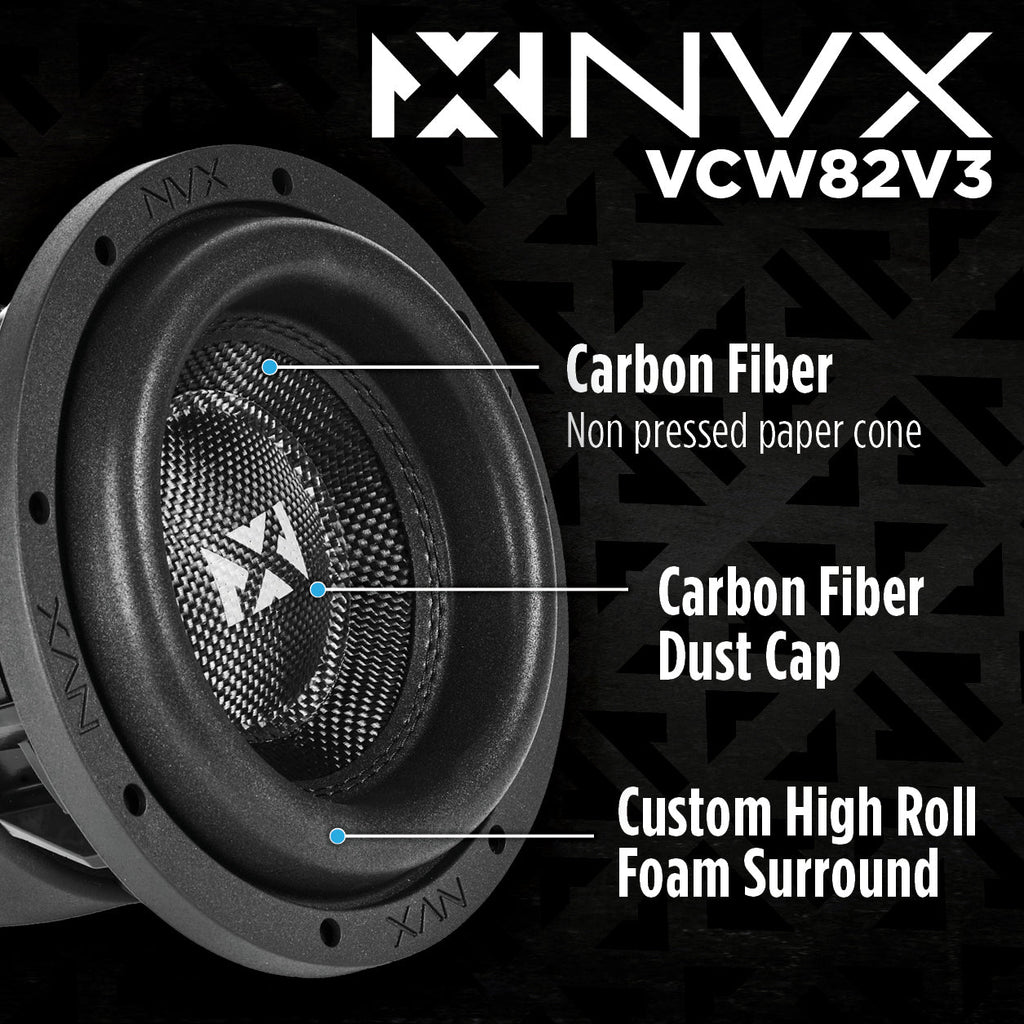

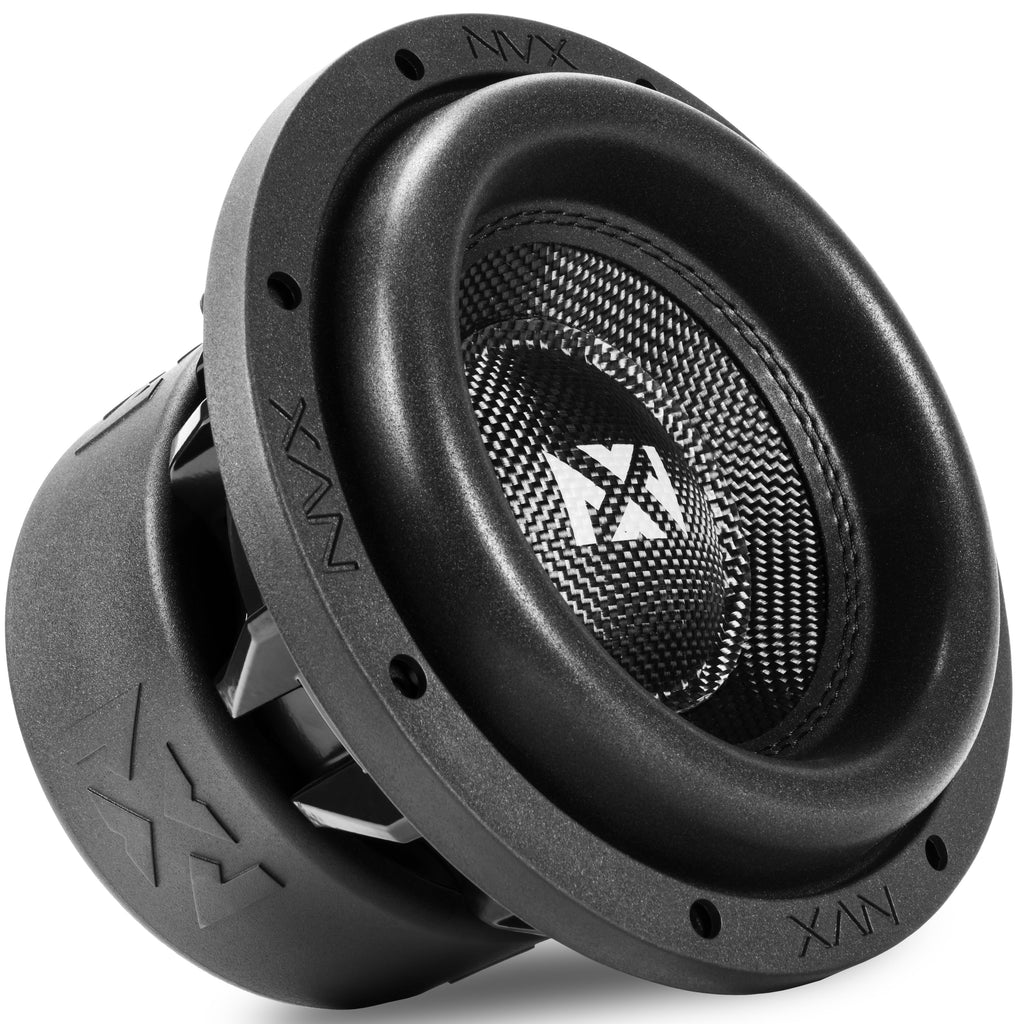

• Carbon-fiber-enhanced non-pressed paper cone uses a high-roll foam surround with black nylon stitching.

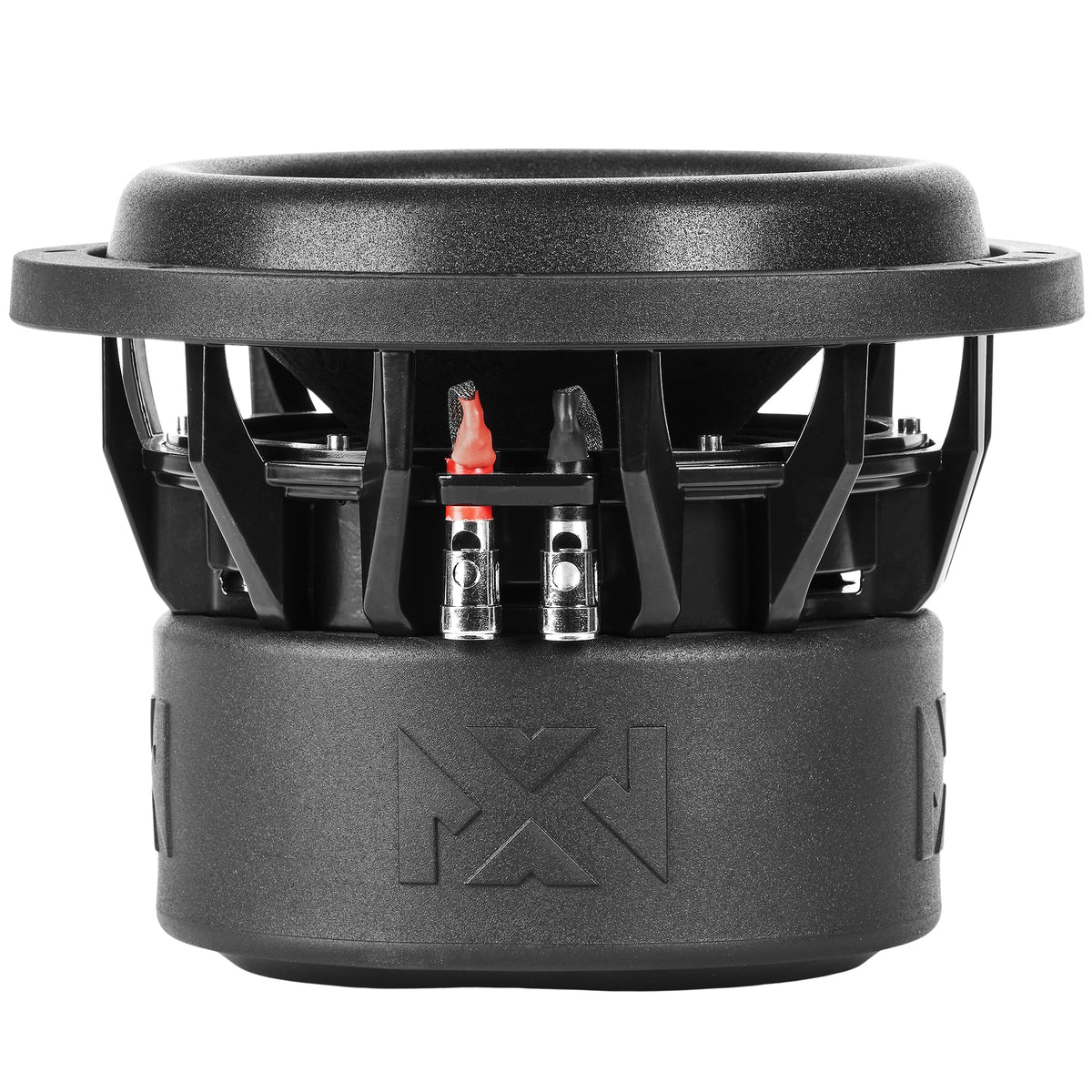

• Die-cast aluminum vented basket supports airflow around the motor and voice coil.
• 2.5-inch four-layer high-temperature black-aluminum voice coil handles the listed power rating.

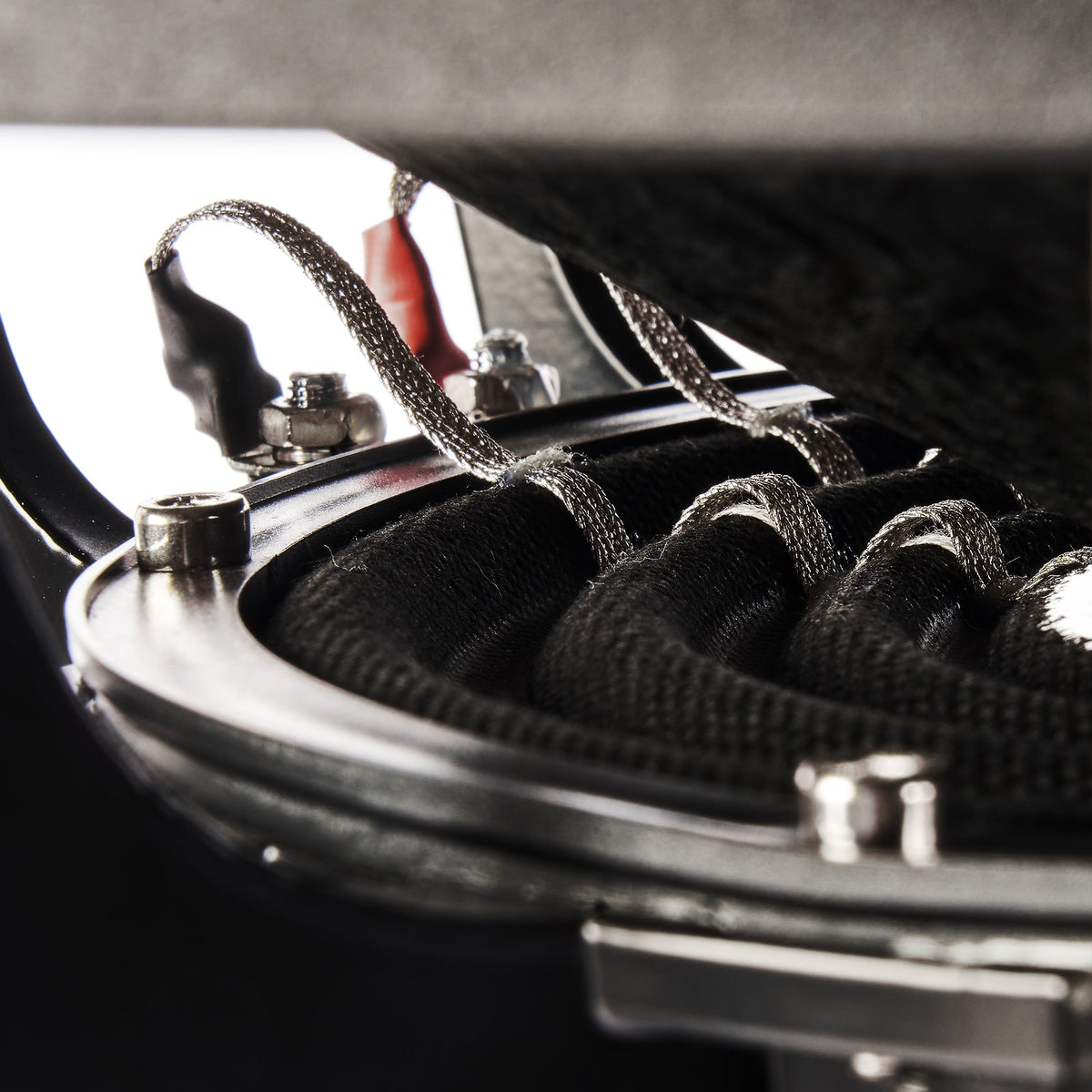

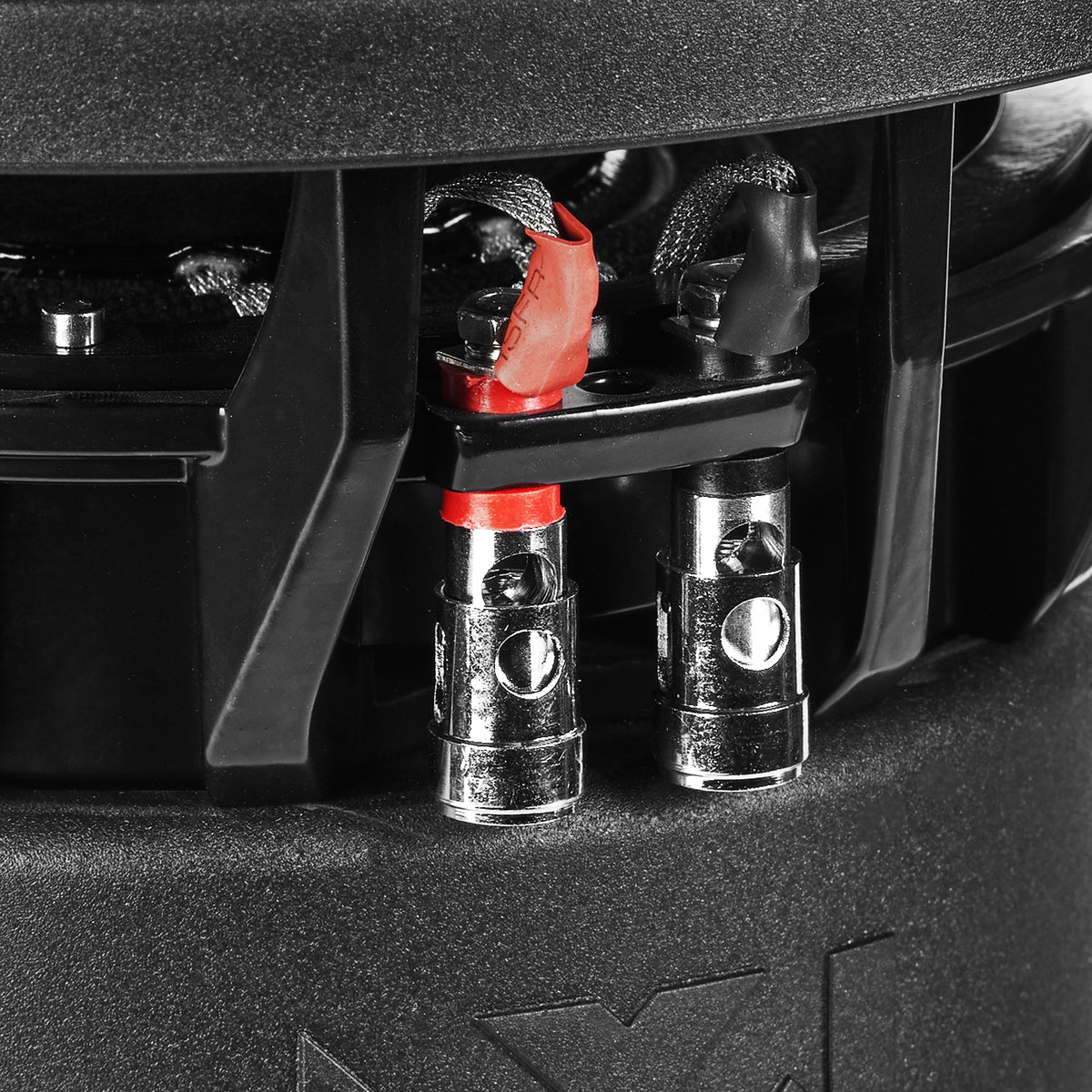

• Dual progressive-roll spiders integrate flat-braided leads.

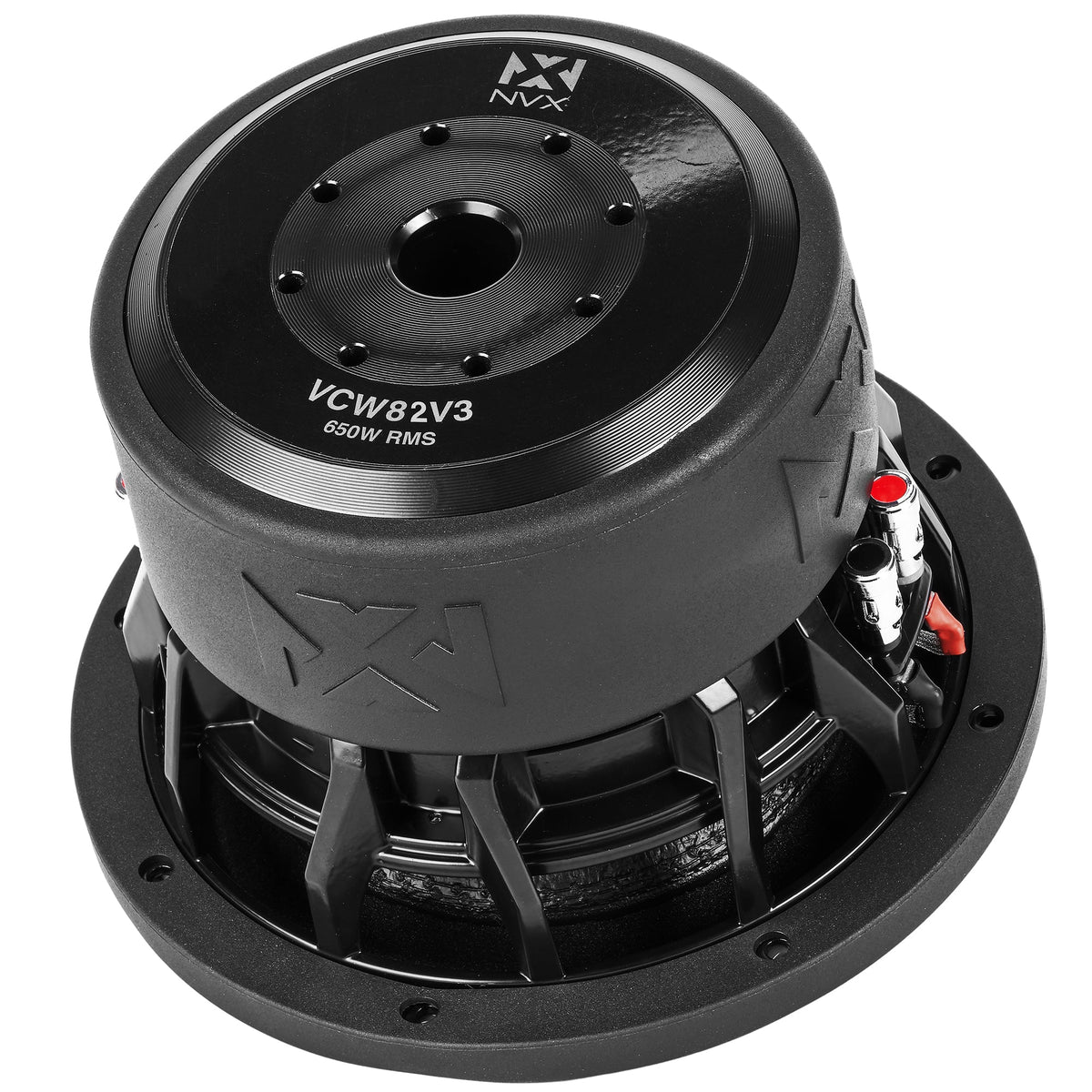

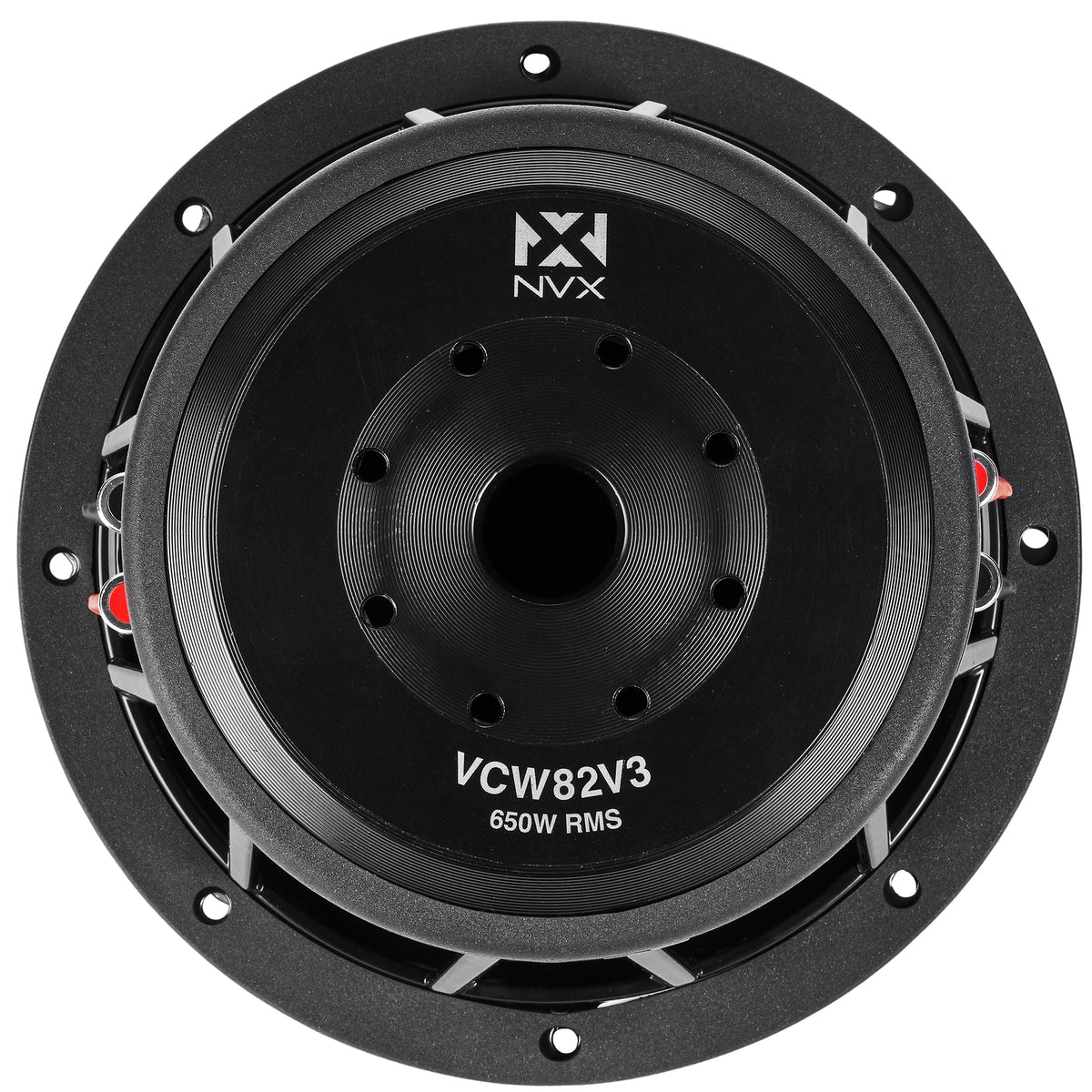

• Triple-stacked 124oz Y35 ferrite magnet includes a protective rubber boot.
• Optimized pole vent and one-piece T-yoke provide integrated gap ventilation.

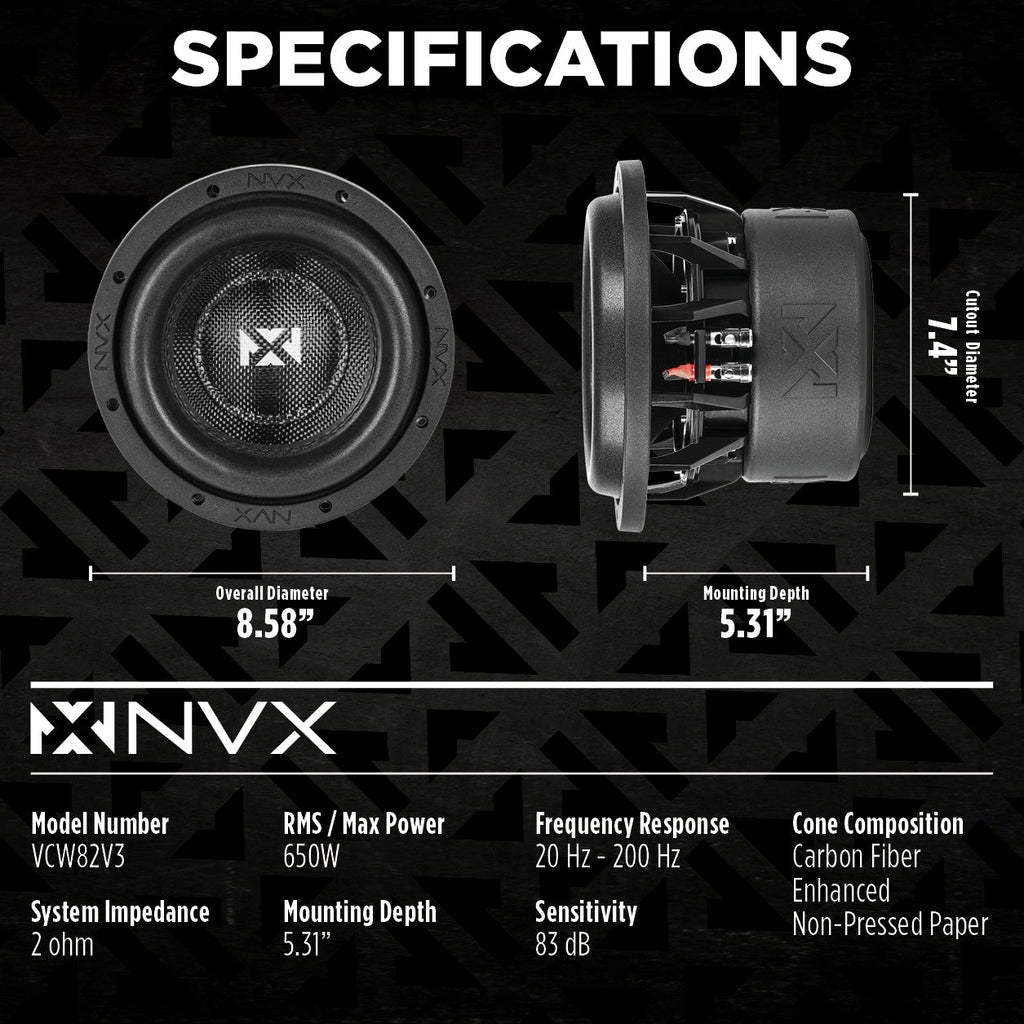

Specifications

• Model: VCW82v3
• Series: VC-Series v3
• Diameter: 8 inches
• Voice coils: Dual 2 ohms
• Power handling: 650W RMS; 1300W peak
• Xmax: 14mm one way
• Frequency response: 20–200Hz
• Resonance frequency: 41Hz
• Sensitivity: 83dB at 1W/1m
• Recommended ported enclosure: 1.0 cubic foot
• Top-mount depth: 5.31 inches
• Cutout diameter: 7.4 inches
• Magnet: 124oz triple-stacked Y35 ferrite
• Compliance: CTA-2031
• Supplier item: vcw82
• Barcode: 810021845098
